DreamBook T7 Tough Tablet

From
$1,899 RRP (Inc-GST)

Build your own

Product Information

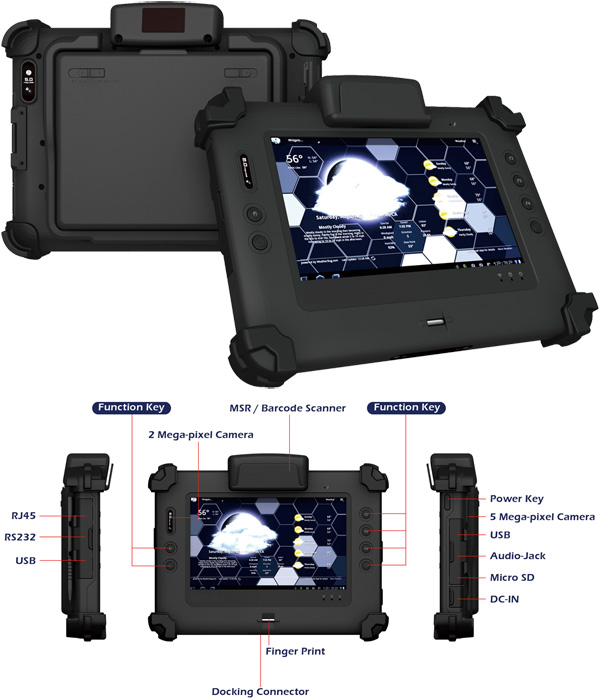

The DreamBook T7 Tough Tablet is the best functionality and ergonomics for user application. Based on MIL-STD-810G military standard reliability, the Rugged Tablet PC pass from -20 to 50 °C, highly transit shock and vibration, 5ft drop to plywood on concrete surface, and also IP65 fully sealed to against water and dust damage. The optional devices include RFID module, 1D/2D barcode scanner and magnetic stripe reader (MSR). With sunlight readable touch screen coating technology and seamless communication functions, T7 can meet the most of harsh outdoor environment application and will be the best tool of your job assistance.

Features:

• Slim, rugged, sealed and lightweight design
• IP65, MIL-STD-810G and MIL-STD-461F
• Sunlight Readable function (optional)
• Seamless communication functions, 3.5G or
• LTE (optional)
• Dual camera and GPS/fingerprint module support
• Hot swappable dual battery with up to 8 hours battery life
• Wide coverage accessories to meet different
• deployment needs
• The compact vehicle dock and vehicle power module for mobile application

Specifications

System CPU: Intel® Atom™ N2600 1.6GHz Dual Core Processor (Cedar Trail)
Memory: 2GB DDRIII 800 SO-DIMM
Storage: 32GB SATA half-slim size SSD
Display: 7-inch LED backlight screen with 5-wire Resistive Touch
Display Resolution: 1280 (W) x 800 (H) WSXGA
Display Brightness: 400nits / optional 500nits Sunlight Readable
Audio: 1 x High quality speaker
Communication: Wi-Fi IEEE 802.11 a/b/g/n and Bluetooth 4.0
RFID: ISO/IEC 14443A, 14443B; Mifare 1K/4K, Ultralight; NFC-IP1 Protocol
Webcam: 2 Mega-pixel camera audio input (Front bezel); 5 Mega-pixel camera with LED light (Rear bezel)
TPM: TPM 1.2 (option)
WWAN: 3.5G or LTE (option)
GPS: Embedded
In Front Control 1 x Power button, 6 x Program function button, 1 x Finger print
I/O Ports USB Port: 2 x USB 2.0 type A
Serial: 1 x RS-232
Ethernet: 1 x 10/100/1000 Mbps (RJ45)
Audio Jack: 1 (for microphone and headphone)
Docking Connector: 1
DC Jack: 1
Micro SD Slot: 1
Mechanical & Environment Dimensions/Weight: 225(W) x 168(H) x 26.5(D) mm , 0.85kg (1.87lb)
Certifications: CE, FCC
Operating System: WES7-WS7P, Win7 Pro. (Embedded)
Protection Class: IP65
Drop: 5-ft drop resistance (MIL-STD-810G)
Shock: Operating : 40g, 11ms, MIL-STD-810G 516.6
Temperature: Operating : -20°C to +50°C Storage : -30°C to +70°C
Humidity: 5~95% without condensation
Power Management Battery: Internal Smart Lithium Polymer battery, 3000mAH, 7.4V
Power Adapter: AC 100V~240V, 50~60Hz input; 19VDC @3.42A, 65W
