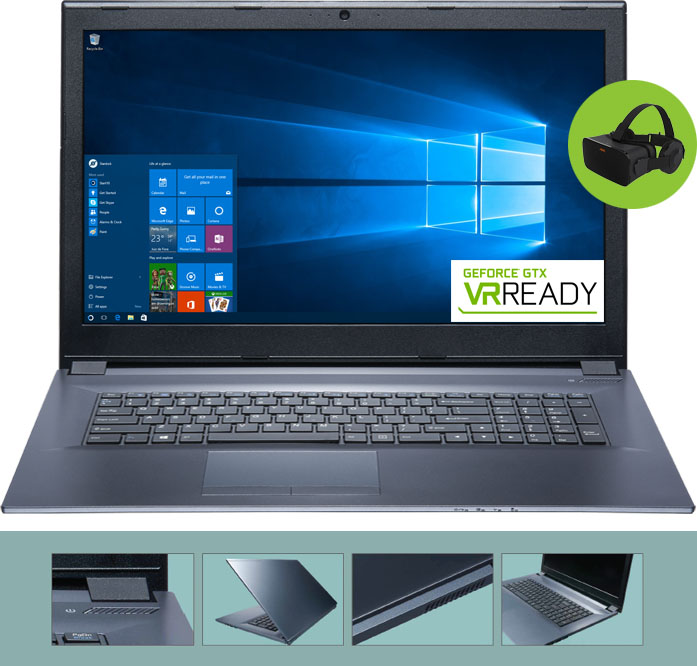

DreamBook Power N87 VR

From
$1,649 RRP (Inc-GST)

Build your own

Specifications

Processor • Intel® Core™ i7-7700HQ processor (14nm, 2.8GHz, DDR4 2400MHz, 6MB Smart cache, TDP: 45W)
• Intel® Core™ i5-7300HQ processor (14nm, 2.5GHz, DDR4 2400MHz, 6MB Smart cache, TDP: 45W)
Core Logic • Mobile Intel® HM175 Express Chipset
Display • 17.3” (43.94cm) FHD (1920x1080; 16:9) Crystal Bright Display
Memory • Dual channel DDR4
• Two 260 pins SODIMM sockets, support DDR4 2400 MHz (Real operation frequency depends on processor)
• Expandable memory up to 32GB, depends on 4GB/8GB/16GB SODIMM module
• Support XMP 2666MHz (XMP support depends on processor and works in dual channel)
Video Controller • Intel® HD Graphics 630
- Dynamic frequency
- Intel Dynamic Video Memory Technology
- Microsoft DirectX® 12 compatible
• NVIDIA® GeForce GTX 1060 (N17E-G1)
- 6GB GDDR5 Video RAM
- Support PCIe x16
- Microsoft DirectX® 12 compatible
- GeForce CUDA™ technology
- Battery Boost technology
• Microsoft Hybrid Graphics
• Support 4 active displays
Storage • One changeable 2.5” 9.5mm/7mm(H) HDD / SSD, SATA interface
• One M.2 2280 SSD, SATA or PCIe Gen3 x4 interface, Auto detection
Audio • High Definition Audio
• Built in array microphone
• Built in two speakers
• Sound Blaster™ Cinema 3
Keyboard & Pointing Device • Multi languages white-LED illuminated full size keyboard with numeric pad
• (Factory Option) Full color RGB illuminated full size keyboard with numeric pad
• Built in touch pad with Microsoft PTP multi-gesture and scrolling function
I/O ports • 1 x USB 2.0 port
• 2 x USB 3.0 (USB 3.1 Gen 1) ports (Type A)
• 1 x USB 3.0 (USB 3.1 Gen 1) port (Type C)
• (Factory Option) 1 x USB 3.1 Gen 2 port (share with USB 3.0 port) (Type A) and 1x USB 3.1 Gen 2 port (share with USB 3.0 port) (Type-C)
(2 x USB 3.1 Gen 2 ports with 10Gb shared bandwidth)
• 1x Mini Display port 1.2
• 1x Mini Display port 1.3
• 1 x HDMI™ output port (with HDCP)
• 1 x Headphone jack
• 1 x Microphone jack
• 1 x RJ-45 LAN port
• 1 x DC-in jack
Card Reader • 6-in-1 Push-Push Card reader
- MMC / RSMMC
- SD / mini SD / SDHC / SDXC
Slot • Two M.2 card slots
- 1st for WLAN Combo M.2 2230 Card with USB interface (A key)
- 2nd for SSD M.2 2280 Card with SATA / PCIe Gen3 x4 interface (M key)
Communication • Built in 10/100/1000Mb Base-TX Ethernet LAN
• (Factory Option) Intel® Dual Band Wireless-AC 8265, 2x2 AC +BT M.2 2230 (Windstorm Peak)
• (Factory Option) Intel® Dual Band Wireless-AC 3168, 1x1 AC +BT M.2 2230 (Sandy Peak)
• 1.0M HD video camera
• (Factory Option) 2.0M FHD video camera
Power Supply • Full Range AC adapter, AC in 100~240V, 50~60Hz, DC output 19.5V, 9.23A, 180W
• Removable 6 cells Smart Lithium-Ion battery pack, 62WH
• Battery life: 325 minutes (with UMA mode, 62WH Battery) (TBC)
Security • Security (Kensington® Type) Lock Slot
• Intel® PTT for system without Hardware TPM
• (Factory Option) TPM 2.0
Others Design • Shipping Mode
• FlexiCharger
• Virtual Reality ready
• Microsoft Cortana with Voice Technology
O/S Support • Windows® 10 (64-bit)
Certificate • Windows® 10 (64-bit) Logo
• HDMI™ Logo
Dimension • 418.5 (W) x 288.7 (D) x 29.9 (H) mm (TBC)
Weight • 3.2 kg,including Barebone and 62WH Battery (TBC)
