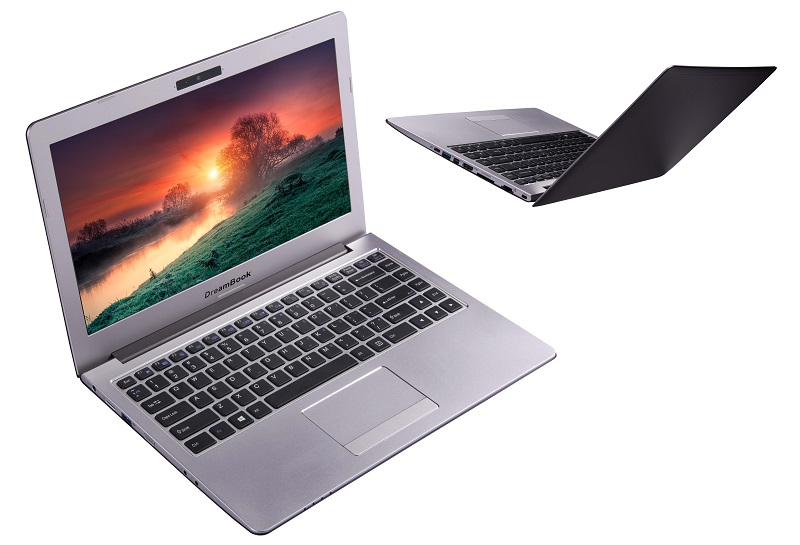

DreamBook Ultra Slim N13

From
$659 RRP (Inc-GST)

Build your own

Brochure

Product Information

Thunderbolt™ 3 combo port:
- The USB-C That Does It All
Windows Hello Camera:
- you are the password

Specifications

Processor / Core Logic • Intel® Core™ i7-8550U processor (14nm, 1.8GHz, DDR4-2400MHz, 8MB Smart Cache, TDP: 15W)
• Intel® Core™ i5-8250U processor (14nm, 1.6GHz, DDR4-2400MHz, 6MB Smart Cache, TDP: 15W)
• Intel® Core™ i3-7100U processor (14nm, 2.4GHz, DDR4-2133MHz, 3MB Smart Cache, TDP: 15W)
• Intel® Core™ i7-7500U processor (14nm, 2.7GHz, DDR4-2133MHz, 4MB Smart Cache, TDP: 15W)
• Intel® Core™ i5-7200U processor (14nm, 2.5GHz, DDR4-2133MHz, 3MB Smart Cache, TDP: 15W)
• Intel® Core™ i3-7130U processor (14nm, 2.7GHz, DDR4-2133MHz, 3MB Smart Cache, TDP: 15W)
• Intel® Pentium® 4415U processor (14nm, 2.3GHz, DDR4-2133MHz, 2MB Smart Cache, TDP: 15W)
• Intel® Celeron® 3865U processor (14nm, 1.8GHz, DDR4-2133MHz, 2MB Smart Cache, TDP: 15W)
Display • 13.3” (33.78cm) QHD+ (3200x1800) / FHD (1920x1080) / HD+ (1600x900) / 16:9 panel, 2.85mm
Memory • Dual channel DDR4 (i7-8550U/ i5-8250U integrated)
- Two 260 pins SODIMM sockets, support DDR4 2400MHz (Real operation frequency depends on processor)
- Expandable memory up to 32GB, depends on 4GB/8GB/16GB SODIMM Module
• Dual channel DDR4 (i7-75000U/ i5-7200U/i3-7100U/i3-7130U/4415U/3865U integrated)
- Two 260 pins SODIMM sockets, support DDR4 2133MHz (Real operation frequency depends on processor)
- Expandable memory up to 32GB, depends on 4GB/8GB/16GB SODIMM Module
Video Controller • Intel® UHD Graphics 620 (i7-8550U/ i5-8250U integrated)
- Dynamic frequency
- Intel Dynamic Video Memory Technology
- Microsoft DirectX® 12 compatible
• Intel® HD Graphics 620 (i7-7500U/ i5-7200U/ i3-7100U/i3-7130U integrated)
- Dynamic frequency
- Intel Dynamic Video Memory Technology
- Microsoft DirectX® 12 compatible
• Intel® HD Graphics 610 (4415U/ 3865U integrated)
- Dynamic frequency
- Intel Dynamic Video Memory Technology
- Microsoft DirectX® 12 compatible
Storage • One changeable 2.5” 7.0mm(H) HDD / SSD, SATA interface
• (Factory Option) One M.2 SSD 2280, SATA/PCIE Gen3x4 interface (i7-8550U / i5-8250U / i3-7100U / i7-7500U / i5-7200U / i3-7130U integrated)
• (Factory Option) One M.2 SSD 2280, PCIE Gen2x2 interface (4415U/ 3865U integrated)
Audio • High Definition Audio
• Built inmicrophone
• Built in two speakers
Keyboard & Pointing Device • Multi languages A4 size isolated keyboard
• Built in touch pad with Microsoft PTP multi-gesture and scrolling function
I/O ports • 2 x USB 3.0 (USB3.1 Gen 1) ports (Type A)
• Thunderbolt™ 3 combo port (Type C)
• 1 x Mini Display port 1.2
• 1 x HDMI™ output port (with HDCP)
• 1 x Headphone jack
• 1 x Microphone jack
• 1 x RJ-45 LAN port
• 1 x DC-in jack
Card Reader • 6-in-1 Card reader
- MMC / RSMMC
- SD / mini SD / SDHC / SDXC Slot
Slot • Three M.2 card slot(i7-8550U/ i7-7500U/ i5-8250U/ i5-7200U/ i3-7130U/ i3-7100U integrated)
- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface (A Key)
- 2nd for M.2 SSD 2280 Card with SATA / PCIE Gen3x4 interface (M Key)
- (Factory Option) 3rd for LTE or UMTS/HSPA+ M.2 3042 Card with USB interface (B Key)
• Three M.2 card slot(4415U/3865U integrated)
- 1st for WLAN Combo M.2 2230 Card with PCIe and USB interface (A Key)
- 2nd for M.2 SSD 2280 Card with PCIE Gen2x2 interface (M Key)
- (Factory Option) 3rd for LTE or UMTS/HSPA+ M.2 3042 Card with USB interface (B Key)
Communication • Built in 10/100/1000Mb Base-TX Ethernet LAN
• (Factory option) Intel® Dual Band Wireless-AC 8265, 2x2 AC +BT M.2 2230 (Windstorm Peak)
• (Factory option) Intel® Dual Band Wireless-AC 3168, 1x1 AC +BT M.2 2230 (Sandy Peak)
• (Factory option) UMTS/HSPA+ M.2 module 3042
• (Factory option) LTE M.2 module 3042
• 1.0M HD video camera or (Factory option) Windows Hello Camera
Power Supply • Full Range AC adapter, AC in 100~240V, 50~60Hz, DC output 19V 2.1A, 40W
• Embedded Polymer Smart Lithium-Ion battery pack, 36WH
• Battery life: 480 minutes (with 36WH battery)
Security • Security (Kensington® Type) Lock Slot
• Intel® PTT for system without Hardware TPM
• (Factory option) TPM 2.0
• (Factory option) Windows Hello Camera
Other design • Metal (A/C/D)
• Shipping mode
• Flexicharger
• Intel Optane
OS Support • Windows® 10
Certificate • Windows® 10 Logo
• HDMITM Logo
Dimension • 329.8(W) x 225(D) x 17.8(H)mm
Weight • 1.3kg,including Barebone and 36WH Battery
