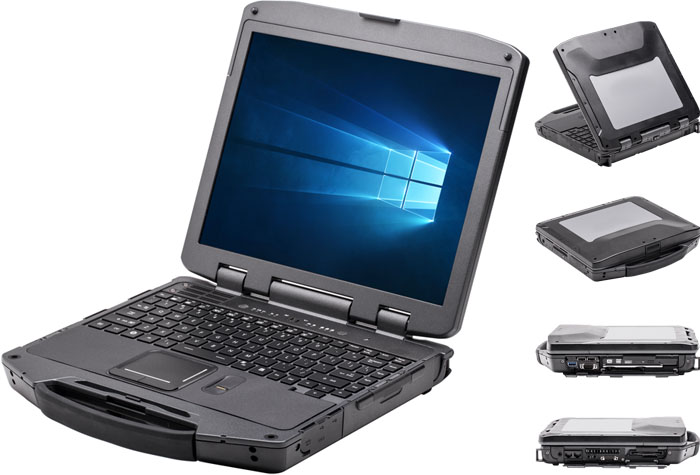

DreamBook Rugged R13

$3,479 RRP (Inc-GST)

Build your own


Extreme Environment Gunfire Shock
MIL-STD 810G Method 519.6, Annex D, Table 519.6D-I
Hazardous Shock
MIL-STD 810G Method 516.6 Procedure V, 75G's @ 8ms, 3 shocks/axis/direction, total 18 shocks
Helicopter Integrity
MIL-STD 810G, Method 514.6, Procedure I, Category 24, Fig. 514.6E-2
Blowing Rain
MIL-STD 810G, Method 506.5, Procedure II, 30 Minutes, 70MPH
Blowing Dust
MIL-STD 810G, Method 510.5 Procedure I, Air Flow 1725 FPM, (23°C~60°C for 12 hours)
Explosive Atmosphere
MIL-STD 810G Method 511.5, Procedure I
Freeze Thaw
MIL-STD 810G, Method 524, Procedure III
Acidic Atmosphere
MIL-STD 810G, Method 518.1
Solar Radiation
MIL-STD 810G, Method 505.5, Procedure II
Salt Fog
MIL-STD 810G, Method 509.5
Military EMC
MIL-STD 461F Level II (with MIL-STD 461F adaptor)
IP65 IPx5 IEC 529 (EN6052)
IP6X IEC 529 (EN60529)
Rugged Features Drop
MIL-STD 810G 516.6 Procedure IV, 26 drops from 6 feet height onto plywood over concrete
Vibration General Integrity
MIL-STD 810G, Method 514.6, Procedure I, Category 24, Fig. 514.6E-1
Vibration Truck Transport
ASTM 4169, 11.5.2 Random test, Assurance Level II
Functional Shock
MIL-STD 810G Method 516.6 Procedure I40G’s @ 11ms, 3 shocks/axis/direction 18 total shocks
Rain Test
MIL-STD 810G, Method 506.4, Procedure II, 40 PSIG, min 6 axis, 4 in/hour
Temperature Shock
MIL-STD810G, Method 503.5, Procedure I-C, 3 cycles
Environment Temperature
Operating: -30°C ~ 60°C2 MIL-STD 810G 501.5 Procedure II
Storage: -51°C ~ 71°C MIL-STD 810G 501.5/502.5 Procedure I
Operating: 5% ~ 95%
Operating: 15,000 feet MIL-STD 810G 500.5 Procedure II
Non Operating: 40,000 feet MIL-STD 810G 500.5 Procedure I
Operating System Windows® 7 Professional
Windows® 10 Home
Windows® 10 Professional
Processor Intel® 6th Generation Skylake-U
Display 13.3" XGA (1024x768) TFT LCD
Single resistive Touch Panel
Sunlight Readable 1050 nits Display
Memory 2x DDR4 sockets (Max. 32GB)
Storage 2.5" Serial-ATA HDD or SSD
Optical Disk Drive Supermulti DVD Writer or Blu-Ray BD/DVD Writer
Keyboard Illuminated keyboard with adjustable brightness
Audio Intel® High Definition Audio
2x 1.5KHz Speaker 75dB
Analog Microphone
Communication 2x 10/100/1000Mbps Ethernet
Intel® Dual Band Wireless AC8260 (a/b/g/n/AC) & Bluetooth 4.2
LTE WWAN (optional)
GPS (UBLOX-NEO-M8N) (optional)
Security Smart Card Reader
Fingerprint Scanner
Computrace® Ready
Intel® vPro
TPM 2.0
Kensington Lock
Stealth Mode
Quick Release HDD
Button Power
1x Programmable button
Expansion Slots 1x Smart Card Reader
1x Express Card 54 or PCMCIA (optional)
1x SD Card supports SDXC card
I/O Ports 2x USB 2.0
1x USB 3.0
1x Headphone jack
1x Microphone jack
2x RJ-45
1x VGA port or HDMI or Second RS232
1x RS232 port
1x Docking connector
3x RF pass through for WLAN, GPS and WWAN
Battery 86.6WH 9-Cell Lithium-ion Primary battery, 13.5 hours life (with SSD)
42.18WH 6-Cell Lithium-ion Secondary battery, 5.5 hours life (optional)
AC Adaptor 100V - 240V; 90W
Dimensions 306(W) x 294(D) x 58 ~ 65(H)mm
Weight 3.6 Kg / 7.9 lbs
