DreamVision All-in-One Tough Panel PC K190

$1,909 RRP (Inc-GST)

Build your own

Product Information

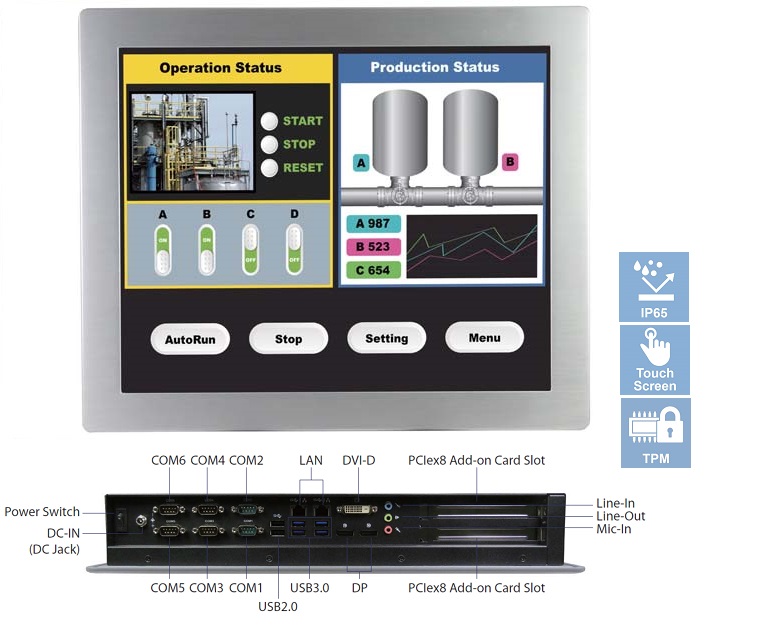

Powered by IntelŪ's latest 6th Generation Skylake S-Series Processors, the DreamVision All-in-One Tough Panel PC K190 has greatly improved graphics performance, power efficiency and wireless connectivity. In addition to 1x DVI-D, 2x DP, 4x USB3.0, 2x USB2.0, 6x COM, and 2x LAN for display output, peripheral applications and wired networking, it has a variety of expansion slots /sockets for wireless, storage or other function expansion, including PCIex8 add-on card, mPCIe / mSATA, SATA slots / sockets. Finally, an IP65-rated aluminium front bezel that houses the LCD display can provide good resistance to water spray and makes it suitable for harsh environments.


CPU Support LGA1151 Socket 6th Gen. IntelŪ Skylake S-Series Processor (35W TDP)
Chipset IntelŪ Q170 Chipset
Memory 2x DDR4 1866/2133 SO-DIMM Socket up to 32GB
Graphics Up to IntelŪ HD Graphics 620
Display Panel Display Size: 1280 x 1024 SXGA
Resolution: 19 inch, 5:4
Backlight: LED
Contrast Ratio: 1000:1 (typical)
Brightness: 250cd/mē (typical)
Color: 16.7M
Viewing Angle (L/R/H/L): 85°/85°/80°/80°
Touch: 5-wire resistive
Touch Sensor 5-wire resistive touch sensor
External Display 1x DVI-D (on rear, 2560 x 1600 @ 60Hz)
2x DP (on rear, 4096 x 2304 @ 60Hz)
LAN 10/100/1000 LAN
2 (RJ-45 on rear, 1x IntelŪ I219-LM, 1x IntelŪ I210-AT)
Audio Realtek ALC662 HD Codec w/ 2(3W) Speaker-out
1x Line-in (on rear)
1x Line-out (on rear)
1x Mic-in (on rear)
Storage 1x 2.5" SATA HDD / SSD
1x mSATA / mPCIe
1x mPCIe
USB 4x USB3.0 (Type A on rear)
2x USB2.0 (Type A on rear)
COM 3x RS-232/422/485 (DB9 on rear)
3x RS-232 (DB9 on rear)
TPM & iAMT support TPM: Yes (Infineon SLB 9660 TPM 1.2)
iAMT: depending on processor
Expansion Slot 2x PCIex8 add-on card slot (on rear)
1x SIM Card Cage (optional)
Hardware Monitor Input & Core Voltages, CPU & System Temperatures
Watchdog Timer Programmable WDT to generate system reset event
Power Connector: Phoenix Connector (on rear) or Lockable DC Jack (on rear)
Input Voltage: DC 12V (default), 24V or other options (by request)
Power Adapter: AC to DC, 100V ~ 240V
1x Power Switch (on rear)
OS Supported Windows 7, Windows 8, Linux, Windows 10
Dimensions 448 x 373 x 72.5 mm / 17.64" x 14.69" x 2.85" (WxHxD)
Environment Operation Temp.: 0°C ~ 50°C / 32°F ~ 122°F
Storage Temp.: -20°C ~ 70°C / -4°F ~ 158°F
Humidity: 0% ~ 95%
Certification CE, FCC Class A, IP65 (front bezel)
