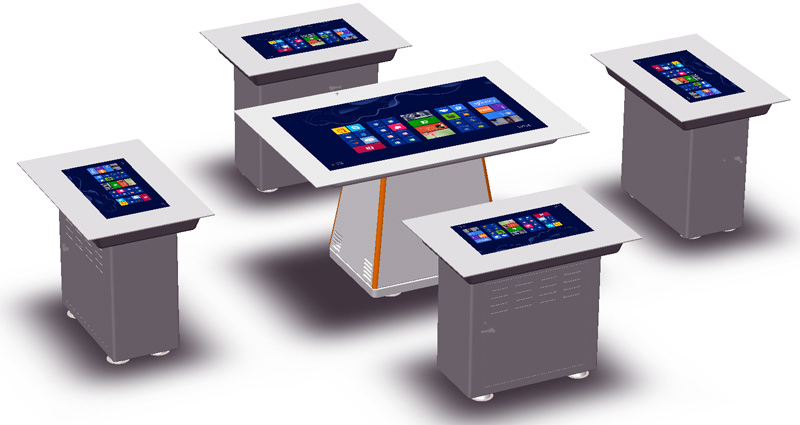

DreamVision Touch Table-Top Touch PC T55

$14,999 RRP (Inc-GST)

Buy

Product Information

Features * 10 Independent Touch Points * Advanced “Palm Rejection” function eliminates false touched in angled/Table-top applications

Specifications

LED 55” TFT LED Panel, (16:9)
0.311 x 0.311mm
1209.6 x 680.4mm (H x V)
4000 : 1 (Typ)
450 cd/m˛ (Typ)
178 (H)/178 (V)
1920 x 1080
8ms (Tr/Tf)
LED Back light
I/O Connectors VGA 15-pin D-SUB, DVI, USB Touch
Power Adapter AC Input: 100-240V~
Dimensions Table Surface Dimension: 1350 x 8200mm
Table Height: 765mm
Weight: 60 Kgs
Touch Sensor Detection Method: Projected Capacitive Technology (PCT™) mutual capacitive type
Sensor: Glass with embedded micro-fine sensing array
Electronics: Remotely sited PCB, USB connectivity
Optical Resolution: > 4 lines/mm (NBS1963A)
Light Transmission: ~90%
Haze: < 3% (Gardner Haze) if Anti Glare glass specified
Immunity to Damage: Glass surface with no moving parts
Sensor Thickness: < 6mm
Stylus Type: Finger, Gloved Hand, Conductive stylus
Operation Force: < 0.1g
Hardness Glass: Hardness – Mohs 7
Sensor MTBF: Glass with no moving parts or coatings. No known wear out mechanisms
Sealability: Can be sealed to meet NEMA 4, 12 and IP 65 standards
Vibration: In accordance with IEC 60068-2-64 when installed in a suitable bezel
Touch Controller • X-Y co-ordinate update rate, 1mS (based on 22” screen)
• Glass thickness operation, max 6mm
• Accuracy < 1mm (based on 22” screen)
• Input voltage USB 5V and external 12V DC +/- 5% supply
• On board voltage +12V -12V, +5V -5V, +3.3V, DC
• Current consumption < 100mA
• Supports sensors from 15”- 82”
• Controller recognized as HID device in Linux 3.5.1+ kernel, Windows 7 and 8 operating systems
System Specification
Processor Intel® Socket 1155 for 2nd Generation Core™ i7/Core™ i5/Core™ i3 Processors
Supports Intel® 32 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. (Default: I5 3330S, 2.7GHz 4 core)
System Chipset Intel H61B3
System Memory 4GB, 2 x 240 pin DDR3 DIMM, Max 16GB
Expansion Slot 1 x PCI Express x 16 Gen 2.0 slot
Storage 128GB SSD
Audio Realtek® ALC887 8-Channel High Definition Audio CODEC Built in 10 watt 8 ohm Speaker
Ethernet Realtek® 8111E, 1 x Gigabit LAN Controller(s)
I/O Connectors
Back I/O Ports 1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x D-Sub
1 x LAN (RJ45) port(s)
4 x USB 2.0
1 x COM port(s)
1 x Parallel port(s)
3 x Audio jack(s)
Internal I/O Ports 3 x USB 2.0 connector(s) support(s) additional 6 USB 2.0 port(s)
4 x SATA 3Gb/s connector(s)
1 x CPU Fan connector(s)
1 x Chassis Fan connector(s)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x Internal speaker connector(s)
1 x System panel(s)
I/O Shield 2 x SATA 3Gb/s cable(s)
System BIOS 32 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SMBIOS v2.6, ACPI v2.0a, Multi-language BIOS
OS Windows 7 (Optional)
Accessories User's manual
