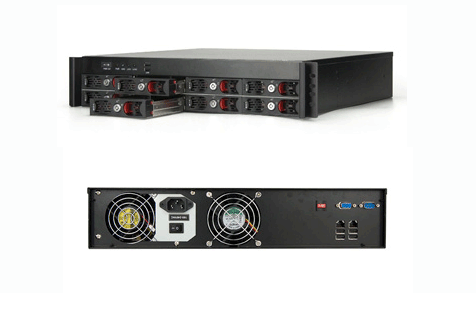

DreamMicro NSR780 Network Attached Storage

$2,199 RRP (Inc-GST)

Reviews & Awards

Product Information

Key Features include:
2U rackmount design
Supports 8x 3.5" S-ATA II hard drives
8 easy-access, lockable drive bays
Bootable Compact Flash Type I socket
Dual Gigabit LAN

The DreamMicro NSR780 has eight S-ATA II drive bays are
easily accessible through lockable front levers that allow
hard drives to be securely installed in moments.
Dual Gigabit LAN ensures fast data transfer speeds.

The DreamMicro NSR780 supports a type-1 compact flash
slot for embedded OS installations and uses PCI-Express-based
Gigabit networking to handle file transfers quickly and efficiently.
A mini-PCI port is also available for additional security
related add-in cards such as hardware VPN or anti-virus modules.

LEDs include individual S-ATA port activity, overall hard drive activity,
network activity and power.
There are also custom LED control and push button backup
and recovery options.

The DreamMicro NSR780 supports Microsoft Windows Server 2003/2007,
Windows Home Server and Linux.
System monitoring and management includes Wake-on-LAN,
Wake-on-Alarm and Watch Dog Timer.
A complete driver and SDK is available to customers.

Specifications

Processor 1.5 GHz VIA C7
Chipset VIA CN700 North Bridge
VT8251 South Bridge
System Memory 1 x DDR2 400/533/667 DIMM socket (effective speed to 533 MHz)
Up to 1GB memory size
Storage 1 x CF type-I slot (Master/Slave selectable)
8 x SATA (3Gbps) connectors
Expansion Slot 1 x 32-bit Mini PCI slot
Onboard TPM Infineon SLB9635TT v1.2 (Trusted Platform Module)
LAN 1 x VIA VT6130 PCIe Gigabit Ethernet controller
1 x VIA VT6122 PCI Gigabit Ethernet controller
Front System I/O Outlet 8 x 3.5 SATA hard drive trays with lock (supports 2.5" SATA hard drive as well)
1 x Power switch for system
2 x USB 2.0 connectors
Rear System I/O Outlet 1 x Reset button
2 x RJ-45 LAN ports
4 x USB 2.0 connectors
1 x VGA port
1 x RS232 port
1 x Power switch for PSU
System Indicator 1 x Orange LED for system power-on
1 x Blue LED for hard drive active
2 x Green LEDs for LAN active
1 x Blue/green/red LED for hard drive status on each tray (power/access/fail)
Power Supply 300W ATX PSU with active PFC & 80 plus
AC 100 ~ 240V, 50/60Hz
Operating System Windows Server 2003/2007, Linux
System Monitoring & Management Wake-on LAN, Wake-on Alarm
Watch Dog Timer
System power management, AC power failure recovery
Operating Temperature 0C ~ 45C
Storage Temperature -20C ~ 70C (90% relative humidity)
Operating Humidity 0% ~ 90% (relative humidity; non-condensing)
Safety Certificate CE, FCC
System Dimension 43.1 cm (W) x 43 cm (L) x 8.8 cm (H). 2U rackmount design
System Weight 9.5 kg
