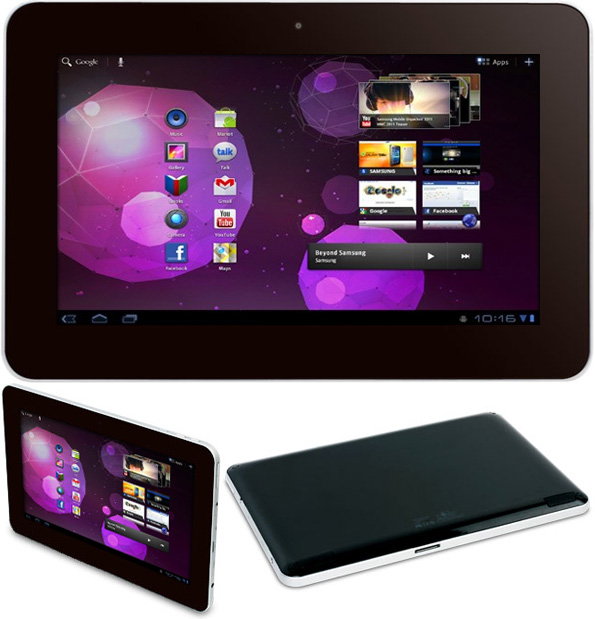

One of The most powerful 10" Dual Core Gaming tablet with Android 4.0, and Flash Support.
| Core logic |
• nVidia Tegra 250™
• Up to 1GHz SMP Dual Core Cortex-A9
• 40nm
• Enhanced 3D
• 1080P Video Encode/Decode
• ULP Audio Decode
• Streaming HD Video
• ~4x vs APX 2600 |
| Memory |
• Up to DDR2-667MHz or 800MHz downgrade
• 512MB |
| LCD Touch Screen |
• WXGA, resolution 1024 x 600
• 10.1“ , Multi-Touch
• Projective Capacitive |
| Audio Codec |
• Realtek ALC5624
• 5mW power consumption for DAC to headphone playback
• DAC SNR 96dB typical, THD -86dB typical
• ADC SNR 93dB typical, THD -80dB typical
• Control sequencer for pop-free start-up and shut-down
• Single register write for default start-up sequence
• Digital Dynamic Range Controller (compressor / limiter)
• 40-lead 5 x 5mm QFN package |
| Speaker/MIC |
• 1.5W SPK w/ stereo
• Internal Microphone support |
| WiFi + Bluetooth |
• AICONN CS168Q
• SDIO interface support
• IEEE 802.11 b/g & Bluetooth 2.1 +EDR
• 1 Antenna support |
| NAND Flash |
• 512MB (SLC type), Up to 32G SD |
| Card reader |
• JMC JMC251
• Support Micro-SD Card
• SDIO interface |
| Webcam |
• Build in Camera module support
• 1.3M
• USB interface |
| G-sensor |
• BOSCH BMA150
• I2C interface
• Resolution Up to 16 Bits |
| 3G WWAN (Optional) |
• Ericsson- F3307
• HSUPA support w/ USB interface |
| GPS (Optional) |
• CastleNet GM-U500T
• UART Interface, chip antenna, 8pin
• Receiver IC: U-blox |
| Docking (Optional) |
• DC in
• HDMI output
• USB x 3
• Line out, Phone Jack x 1
• LED indicator: blue
• [note] When System connect to Docking w/ adaptor plug-in
|
| Battery Pack |
• SMP/BMS SW
• Gas Gauge support
• Li-Polymer, 2S1P, 3300mAh, 7.4V
• Battery life :
- Idle (LCD on) : 7.5 hr
- Play Audio (LCD off) : 16hr
- Play 1080p Video : 6.5hr
- S3 : 98hr |
| AC-Adapter |
• DVE/APD
• Automatic Voltage adjustment between 100 and 240VAC 50/60Hz, 12V, 12Watts, Wall-Mount
|
| Physical Outline |
• Dimension: 275mm x 178mm x 13.6mm
• Weight: 700~750g |
| I/O Port |
• USB x 1
• DC-in Jack
• Line-out / Headphone (3.5 mm)
• Micro-SD Slot
• HDMI x 1
• SIM card slot |
| Button |
• Volume Up/Down Control
• Screen rotation lock
• Power Button :
- 1 sec.: Power On
- When power on mode:
(1) press one time for Suspend mode & Suspend resume
(2) 2 sec.: pop-up a menu for : Silent mode / power off / Suspend / Cancel function
(3) 4 sec.: force to power off
• Back/Menu Button : 1sec. for Back / 2 sec. for Menu function
|
| System Status Indicator |
• Charging : Purple
• Power on : Off
• Battery Full : Blue
• Battery Low (<6%): Red |
| OS Specification |
• Android Version: 4.0
• Flash Support
• Features:
1. Microsoft Exchange support.
2. Applications that run 2-5x faster thanks to the new compiler.
3. Users availing of tethering and hot spot will receive one joint bill from a carrier, a dig at the iPad, whether it be intentional or not.
4. The web browser now zips 2-3 times faster, faster in fact, than the iPad’s browsing experience when compared side-by-side.
5. Orientation camera and speech standards.
6. Applications:
* are now auto-updated
* can be saved on the SD Card
* issue crash reports for developers.
|
| Certification Specification |
|
| EMI |
• CE, R&TTE, JATE, BSMI, C-Tick |
| Safety |
• CB, 3C (By Request) |
| Others |
• RoHS Compliance
• HDMI License |
