| CPU |
Intel® Centrino® 2 Processor 45 nm
PGA Package 478 pins, Socket P
1066MHz FSB |
| Core Logic |
Intel PM45 + ICH9M |
| Display |
15.4" WXGA(1280x800) TFT LCD Cristal Bright Screen
15.4" WUXGA (1920x1200) TFT LCD Cristal Bright Screen |
| Memory |
Two 64-bit wide DDRIII data channels
Two 204 pins SODIMM sockets, support DDRIII 1066/1333MHz
Expandable memory up to 8GB, depends on 1GB/2GB/4GB SODIMM Module |
| Video Controller |
nVIDIA® GeForce® Go 9800M GTS or GTX 260M
1GB GDDRIII Video RAM on board
Support PCI-E x 16
Microsoft® DirectX® 10 Compatible
MXM TypeIII
Support HDCP |
| Storage |
One changeable 12.7mm(H) Combo / Super-Multi / Blu-ray ODD, SATA interface
One changeable 2.5" 9.5mm(H) HDD, SATA interface |
| Keyboard |
Multi language
Built-in Touch pad with scrolling function |
| Sound System |
High Definition Audio interface
3D stereo enhanced sound system
S/PDIF digital output
Sound-Blaster PRO™ compatible
Built-in microphone
Built-in two speakers |

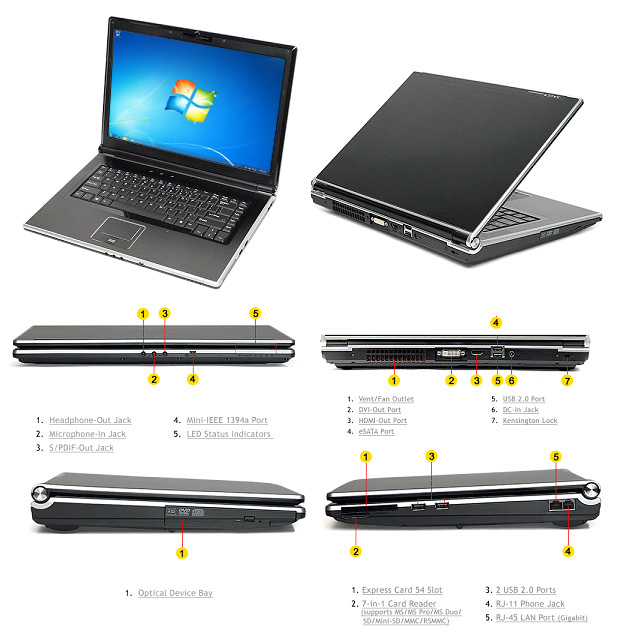

| I/O Ports |
4x USB 2.0 ports
1x eSATA port (VISTA only)
1x IEEE 1394a port
1x DVI-I output port
1x HDMI output port
1x headphone jack
1x microphone jack
1x S/PDIF output jack
1x RJ-11 jack
1x RJ-45 jack
1x DC-in jack |
| Card Reader |
7-in-1 Card Reader (MMC/RSMMC/SD/Mini-SD/MS/MS Pro/MS Duo) |
| Communication |
56K / FAX modem
Built-in 10/100/1000MB Base-TX Ethernet LAN
(Option) Intel® WiFi Link 5300 3x3 802.11AGN MiniCard with PCIe interface
(Option) Intel® WiFi Link 5100 1x2 802.11AGN MiniCard with PCIe interface
(Option) WLAN 802.11b+g MiniCard module with USB interface
(Factory Option) Bluetooth™ V2.0 + EDR module with USB interface
(Factory Option) UMTS/HSDPA 3.5G module, MiniCard with USB interface
(Factory Option) 1.3M/2.0M pixels Video Camera with USB interface |
| Power |
Full Range AC adapter 120W, AC in 100~240V, 50~60Hz, DC output:20V, 6.0A
Removable 8 cells smart Lithium-Ion battery pack, 4400mAh
Battery life > 130 minutes (with 4400mAh) |
| Security |
Kensington® Lock
(Factory Option) Fingerprint security |
| O.S. |
Winodws® VISTA™ (SP1)
Winodws® XP™(SP2)
Winodws® VISTA™ Premium (64-bit) logo |
| Dimension |
364(W) x 269.5(D) x 29~41(H)mm
3.2kg with 8 cells battery and ODD |
| Options |
Combo / Super Multi / SATA interface
Intel® WiFi Link 5300 3x3 802.11AGN MiniCard with PCIe interface
Intel® WiFi Link 5100 1x2 802.11AGN MiniCard with PCIe interface
WLAN 802.11b+g MiniCard module with USB interface
(Factory Option) UMTS/HSDPA 3.5G module, MiniCard with USB interface
(Factory Option) 1.3M/2.0M pixels Video Camera with USB interface
(Factory Option) Bluetooth™ V2.0 + EDR module with USB interface
(Factory Option) Fingerprint security |
