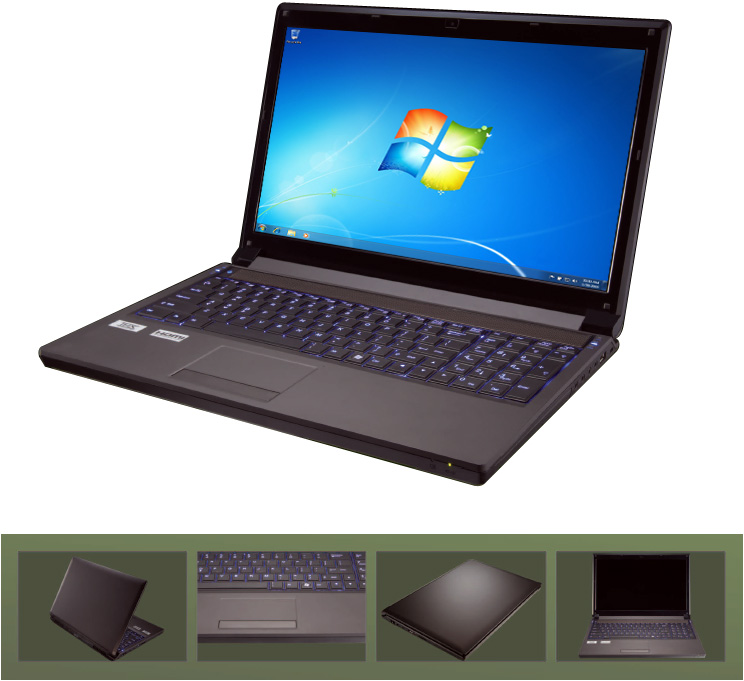

3rd Generation Intel® Core™ i3/i5/i7 15.6" Notebook with nVidia® GTX675M 2GB or Quadro K300M 2GB
| Processor |
• 3rd generation Intel® Core™ i7 processor Extreme Edition
• 3rd generation Intel® Core™ i7 Quad Core processor
• 3rd/2nd generation Intel® Core™ i7/i5 Duo Core processor |
| Core Logic |
3rd generation Intel® HM77 Chipset |
| Display |
• 15.6” (39.62cm) FHD (1920x1080) 16:9 crystal bright screen |
| Memory |
• Dual channel DDR3
• Four 204 pins SODIMM sockets, support DDR3 1333/1600 MHz ( Real operation frequency depends on processor)
• Two DIMMs per channel option is only available in 4 cores processor
• Expandable memory up to 16GB, depends on 2GB/4GB SODIMM module |
| Video Controller |
• nVIDIA® Optimus Technology
• GPU switchable between iGPU and dGPU
• nVIDIA® GeForce GTX 675M (N13E-GS1)
- 2GB GDDR5 Video RAM
-Support PCIe x16
- Microsoft DirectX® 11 compatible
- MXM3.0 TypeB
- NVIDIA PhysX™
- GeForce CUDA™ technology
- NVIDIA® Optimus 1.2 technology
OR
• NVIDIA® Quadro K3000M (N14E-Q1)
-2GB GDDR5 Video RAM
-Support PCIe x16
-Microsoft DirectX® 11 compatible
-MXM3.0 TypeB
-OpenGL 4.3
-NVIDIA® Optimus 1.2 technology |
| Storage |
• (Factory option) One changeable 12.7mm(H) Super Multi/ Blu-ray Combo/ Blu-ray Writer ODD, SATA interface
• One changeable 2.5” 9.5 mm(H) HDD, SATA interface
• (Factory option) One changeable Caddy Bay, 12.7mm(H) ODD, 2.5” 9.5mm(H) HDD, SATA interface
• (Factory Option) mSATA SSD, SATA interface H |
| Audio |
• High Definition Audio
• S/PDIF digital output
• Built in microphone
• Built in two speakers
• Built in one subwoofer speaker
• THX TruStudio Pro
• External 7.1CH audio output supported by headphone, microphone, Line-in jack, S/PDIF
|
| Keyboard and Pointing Device |
• Multi languages illuminated full size keyboard with numeric pad
• Built in touch pad with multi-gesture and scrolling function
• W/A/S/D gaming key |
| I/O ports |
• 1 x USB 2.0 port
• 3 x USB 3.0 ports (1 x powered USB port, AC/DC)
• 1 x eSATA port (USB 3.0 combo, power USB port)
• 1 x Mini IEEE 1394a port
• 1 x Display port 1.1a
• 1 x DVI-I output port (Single link)
• 1 x HDMI 1.4a output port (with HDCP)
• 1 x Headphone jack
• 1 x Microphone jack
• 1 x S/PDIF output jack
• 1 x Line-in jack
• 1 x RJ-45 LAN port
• 1 x DC-in jack |
| Card Reader |
• 9-in-1 Push-Push Card reader
- MMC / RSMMC
- SD / mini SD / SDHC / SDXC
- MS / MS Pro / MS Duo |
| Slot |
• Two Mini Card slots
-1st for WLAN Combo Half size Mini Card with PCIe and USB interface
-2nd for mSATA SSD Full size Mini Card with SATA interface |
| Communication |
• Built in 10/100/1000Mb Base-TX Ethernet LAN
• (Factory Option)Intel® Centrino® Ultimate-N 6300
• (Factory Option)3rd generation Intel® Wireless
• (Factory Option)Wireless LAN 802.11B/G/N + Bluetooth v3.0+HS Combo Half Mini Card module
• (Factory Option)2.0M pixels FHD video camera |
| Power Supply |
• Full Range AC adapter, AC in 100~240V, 50~60Hz, DC output 19V, 9.47A, 180W
• Removable 8 cells Smart Lithium-Ion battery pack, 76.96WH
• Battery life: 360 minutes (with UMA mode, 76.96WH Battery) |
| Security |
• Kensington® Lock
• (Factory Option) Finger print |
| Others Design |
• Painting
• Intel ® Rapid Start Technology
• Intel ® Smart Response Technology
• Intel ® Anti-Theft Technology
• Intel ® Identity Protection Technology
|
| OS Support |
• Windows® 7 (SP1) |
| Certificate |
• Windows® 7 (64-bit) Logo
• HDMI Logo |
| Dimension |
• 376 (W)x256 (D)x35~43 (H)mm |
| Weight |
• 3.1Kg, including ODD and 76.96WH Battery |
