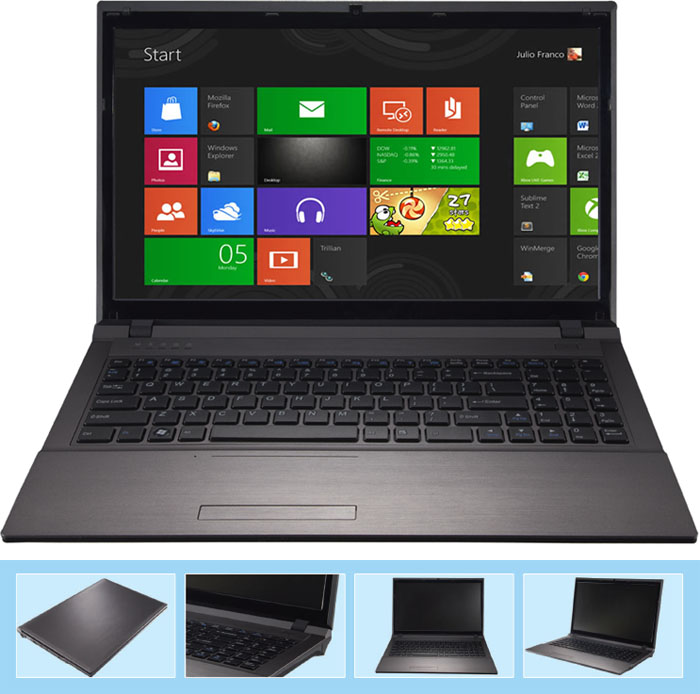

3rd Generation Intel® Core™ i3/i5/i7 Duo/Quad Core Processor (Ivy Bridge), 3G ready
| Processor |
3rd Generation Intel® Core™ i3/i5/i7 Duo/Quad Core Processor (Ivy Bridge) |
| Core Logic |
• Mobile Intel® HM76 Express Chipset |
| Display |
• 15.6” (39.62cm) HD (1366x768) 16:9 Crystal Bright Screen |
| Memory |
• Dual channel DDR3
• Two 204 pins SODIMM sockets, support DDR3 1333/1600MHz (Real operation frequency depends on processor)
• Expandable memory up to 16GB, depends on 1GB/ 2GB/4GB/8GB SODIMM module |
| Video Controller |
• Intel® HD Graphics 4000 (GPU type Depends on Processor)
- Dynamic frequency
- Intel Dynamic Video Memory Technology up to 1.7GB
- Microsoft DirectX® 11 compatible
• Intel® HD Graphics 3000 (GPU type Depends on Processor)
- Dynamic frequency
- Intel Dynamic Video Memory Technology up to 1.7GB
- Microsoft DirectX® 10 compatible
• Intel® HD Graphics (GPU type Depends on Processor)
- Dynamic frequency
- Intel Dynamic Video Memory Technology up to 1.7GB
- Microsoft DirectX® 10 compatible |
| Storage |
• (Factory Option) One changeable 12.7mm(H) Super Multi / Blu-ray Combo ODD, SATA interface
• One changeable 2.5" 9.5mm(H) HDD, SATA interface H |
| Audio |
• High Definition Audio
• Built in microphone
• Built in two speakers |
| Keyboard & Pointing Device |
• Multi languages full size isolated keyboard with numeric pad
• Built in touch pad with multi-gesture and scrolling function |
| I/O ports |
• 1 x USB 2.0 port
• 2 x USB 3.0 ports
• 1 x external VGA port
• 1 x HDMI™ output port (with HDCP)
• 1 x Headphone jack
• 1 x Microphone jack
• 1 x RJ-45 LAN port
• 1 x DC-in jack |
| Card Reader |
• 9-in-1 Card reader
- MMC / RSMMC
- SD / mini SD / SDHC / SDXC
- MS / MS Pro / MS Duo |
| Slot |
• Two Mini Card slots
- 1st for WLAN Combo Half size Mini Card with PCIe and USB interface
- (Factory Option) 2nd for 3.75G Full size Mini Card with USB interface |
| Communication |
• Built in 10/100/1000Mb Base-TX Ethernet LAN
• (Factory Option) Intel® Centrino® Wireless-N 2230 (Jackson Peak 1) 2x2 BGN + Bluetooth
• (Factory Option) Intel® Centrino® Wireless-N 135 (Canyon Peak) 1x1 BGN + Bluetooth
• (Factory Option) Wireless LAN 802.11 B/G/N Half Mini Card module
• (Factory Option) Wireless LAN 802.11 B/G/N + Bluetooth v3.0+HS Combo Half Mini Card module
• (Factory Option) 2.0M HD video camera
• (Factory Option) 3G Build in
|
| Power Supply |
• Full Range AC adapter, AC in 100~240V 50~60Hz, DC output 19V 3.42A or 18.5V 3.5A, 65W
• Removable 6 cells Smart Lithium-Ion battery pack, 48.84WH
• (Factory Option) Removable 6 cells Smart Lithium-Ion battery pack, 62.16WH
• Battery life: 300 minutes (with 48.84WH battery)
• Battery life: 400 minutes (with 62.16WH battery) |
| Security |
• Kensington® Lock |
| Other Design |
• IMR
• Intel® Anti-Theft Technology
• Intel® Smart Connect Technology |
| O/S Support |
• Windows® 7 (SP1)
• Windows® 8 |
| Certificate |
• Windows® 7 (64-bit) Logo
• Windows® 8 (64-bit) Logo |
| Dimensions |
• 374(W) x 250(D) x 14.3~34.1(H)mm |
| Weight |
• 2.3kg, included ODD and 48.84WH Battery |
