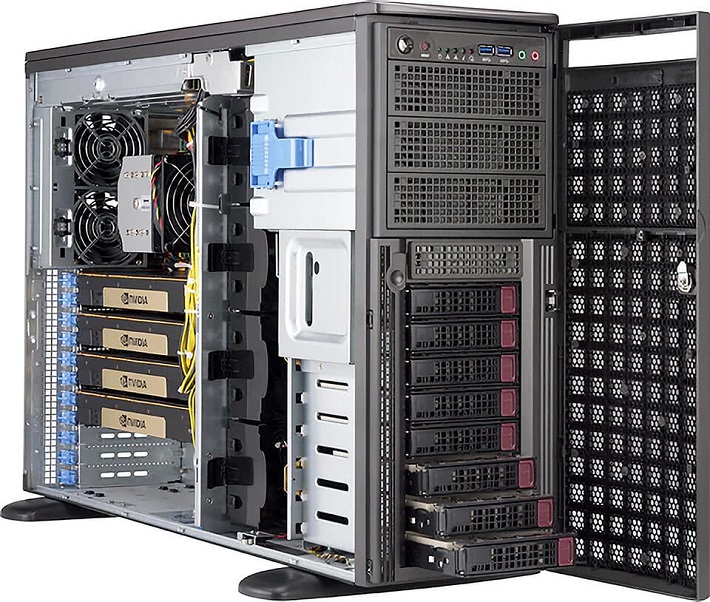

DreamVision Multi GPU HPC 540A

$8,049 RRP (Inc-GST)

Build your own

Product Information

Key Applications
- Deep Learning/AI/Machine Learning Development


CPU Single Socket P+ (LGA-4189)
3rd Gen IntelŽ XeonŽ Scalable processors,IntelŽ XeonŽ W-3300 processors
Support CPU TDP 270W
Cores Up to 38C/76T,40C/80T; Up to 57,60MB Cache
Memory Memory Capacity: 16 DIMM slots
Up to 4TB: 16x 256 GB DRAM
Memory Type: 3200MHz ECC DDR4 RDIMM / LRDIMM
Memory Voltage 1.2 V
Error Detection ECC
Chipset IntelŽ C621A
Network Connectivity 1x 1GbE BaseT with IntelŽ I210-AT
1x 1GbE BaseT with Realtek RTL8211F PHY (dedicated IPMI)
1x 10GbE BaseT with Marvell AQC113
IPMI Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
SATA 8 SATA (6Gbps) port(s)
USB 4 USB 2.0 port(s) (2 header; 2 rear)
6 USB 3.2 Gen 1 port(s) (2 header; 4 rear)
2 USB 3.2 Gen 2 port(s) (1 rear Type A; 1 rear Type C)
1 USB 3.2 Gen 2x2 port(s) (1 rear)
Video 1 VGA port(s)
BIOS Type AMI 256MB SPI Flash
Software SPM
KVM with dedicated LAN
IPMI 2.0
SuperDoctor 5
Watch Dog
Power Configurations ACPI 6.0
Voltage +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
Form Factor Tower
Dimensions and Weight Height 7" (178mm) Width 17.2" (437mm) Depth 29" (737mm)
Net Weight: 46 lbs (20.9 kg)
Gross Weight: 62 lbs (28.1 kg)
Available Color Black Front & Silver Body
Buttons Power On/Off button
System Reset button
LEDs Hard drive activity LED
Network activity LEDs
Power status LED
System Overheat & Power Fail LED
PCI-Express (PCI-E) Slot 1: PCI-E 4.0 x16
Slot 2: PCI-E 4.0 x8 (in x16)
Slot 3: PCI-E 4.0 x16
Slot 4: PCI-E 4.0 x8 (in x16)
Slot 5: PCI-E 4.0 x16
Slot 6: PCI-E 4.0 x8 (in x16)
Slot 7: PCI-E 4.0 x16
Drive Bays / Storage Hot-swap: 8x 3.5" hot-swap SATA drive bays
M.2: 4x PCI-E 4.0 x4
Peripheral Bays: 3x 5.25" drive bays
System Cooling 2x 80mm Fan(s)
4x 92mm Fan(s)
Power Supply 2200W Redundant Power Supplies with PMBus (W x H x L) 76 x 40 x 336 mm
AC Input
1200W: 100-127Vdc / 50-60Hz
1800W: 200-220Vdc / 50-60Hz
1980W: 220-230Vdc / 50-60Hz
2090W: 230-240Vdc / 50-60Hz
2200W: 230-240Vdc / 50-60Hz
Max: 100A / Min: 0A
Max: 150A / Min: 0A
Max: 165A / Min: 0A
Max: 174A / Min: 0A
Max: 183.3A / Min: 0A
Output Type
Backplanes (gold finger)
Certification 80plus Titanium Level
Environmental Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
