| SYSTEM |
|
| Processor |
Intel® Bay Trail-M Quad Core N2930 1.83GHz |
| Memory |
1x 204-pin DDR3L SO-DIMM Socket support up to 8GB |
| Storage |
mSATA SSD 32GB up to 512GB |
| Graphics |
Intel® HD Graphics |
| Display |

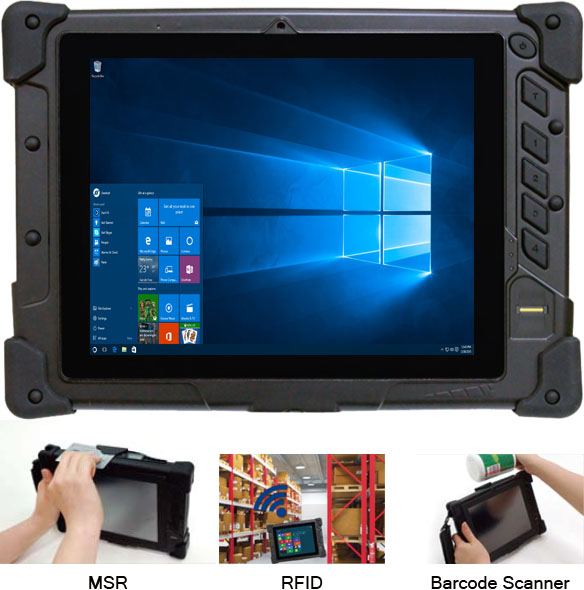

TFT LCD 8 inch
Touch type: Capacitive type. Option: 4 Wires resistive type
Backlight Type: LED
Display Resolution: 1024 x 768 (XGA)
Luminance: 700 nits Sunlight readable |
| Network Interface |
Integrated WLAN 802.11 b/g/n
Integrated Blue Tooth 2.1 + EDR |
| Finger Print |
E-field Swipe Fingerprint Sensor |
| Data Security |
TPM 1.2 |
| Control Switch & Buttons |
1x Power on/off button
1x Barcode Scanner trigger button
1x Function Key button (default on/off control WIFI, BT, 3G, GPS)
3x Function Keys (user define) |
| Indicator |
1 Power / 1 HDD / 1 Battery status LED |
| Speaker & Microphone |
Built-in speaker & microphone |
| INTERFACES |
|
| USB |
2x USB 2.0 Type A |
| DC Jack |
1x DC Power input (16V / 4A) |
| RS-232 |
1x DB-9 RS232 Full function connector |
| Micro SD |
1x Micro Secure Digital (SD) card slot |
| Expansion Docking Port |
1x 16 pin docking connector
(Interface include Power, USB, Audio) |
| RJ45 |
1x 10/100/1000 Ethernet, Support POE
(Power-Over-Ethernet applications up to 25.5W) |
| SIM Socket |
1x SIM socket (located undermeath the external battery pack) |
| POWER |
|
| AC/DC Adapter |
Input AC: 100~240V Output DC: 16V / 4A |
| Battery Pack |
Internal battery, one cell DC 3.7V/ 920mAh
External 3S2P, 6 Cell, DC 10.8V/ 6200mAh
Support Swap under S3 state |
| PHYSICAL |
|
| Dimensions |
251(W) x 181(H) x 39(D)mm (9.88" x 7.13" x 1.54") |
| Weight |
1.3Kg (2.8lbs) with batteries |
| Operating Temperature |
-10°C (14°F) to +50°C (122°F) |
| Storage Temperature |
-20°C (-4°F) to 70°C(158°F) |
| Dust Protection |
IP6x (dust)
IEC 60529 13.4 test Edition 2.1 2001-2 |
| Water Protection |
IPx5 (water)
IEC 60529 14.1/14.2.5 test Edition 2.1 2001-2 |
| Vibration |
5Hz to 500Hz 2g/5g rms: MIL-STD-810G-514.6,E-2 Sine
20Hz to 2000 Hz 7.69g rms: MIL-STD-810G-514.6,E-1 Random |
| Drop Test |
Drop Height: 1200mm
Drop Onto: 4 corner
4 Edges
2 Faces |
| Regulatory |
CE / FCC / FCC ID / EN 60950-1 2005 |
| SOFTWARE |
|
| Operating System |
Windows® Embedded 7 Standard / Linux
Windows® Embedded 7 Professional
Windows® Industry Pro 8.1 Small Tablet
Windows® 10 IoT Enterprise 2015 LTSB for Small Tablets |
| OPTION FUNCTIONS |
|
| WWAN |
WCDMA R99: maximum data rate of 384 kbps
HSDPA: Downlink Category 8 (7.2 Mbps) or 10 (14.4 Mbps)
HSUPA: E-DCH data rates of up to 5.76 Mbps for 2 ms TTI
(UE category 6) uplink
GSM R99: Supports CS SMS
GPRS: CS schemes – CS1, CS2, CS3, and CS4
CDMA 1xEV-DO: High-speed peak data rates of 3.1 Mbps on the downlink and 1.8 Mbps on the uplink
CDMA 1x: Supports up to 153.6 kbps data throughput on both forward and reverse links
EDGE: Downlink coding schemes – CS 1-4, MCS 1-9 |
| GPS |
High performance positioning engine. Supports 56 channels.
GPS L1 Frequency, C/A code. SBAS: WAAS/ EGNOS/MSAS |
| Camera |
Front (2M) & rear (5M) dual CMOS Camera |
| Bar Code Scanner 1D or 2D (UART Interface) |
1D Symbologies: All major codes
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datematrix, QR Code, Micro QR Code, Aztec, Maxicode Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal Dutch Postal (KIX)
Scan rate: 60 frames per second
Scan Angle 40° (Horizontal), 25° (Vertical)
Optical resolution: 752 (H) x 480 (V) pixels, 256 gray levels
Print Contrast: down to 25%
Image File Fomats: BMP, TIFF and JPEG |
| MSR (USB Interface) |
Media formats: ISO 7811, AAMVA, and other F2F formats
Swipe speed: 7 to 150 cm per second, bi-directional
Operating Life: 1,000,000 cycles minimum |
| Smart Card Reader |
EMV 4.0 Level 1 spec certified
Based on ISO7816 implementation
Support PC/SC 2.0 Smart Card industry standard |
| RFID |
1. HF RFID: 13.56 MHz Mifare DESFire Reader / ISO 15693
2. UHF RFID: 860~ 960 MHz |
| ACCESSORIES |
|
| Included |
Shoulder strap, Hand strap |
| Optional |
Docking station: 4x USB, 1x RS-232, 1x VGA, 1x RJ45, 1x DC in, Earphone, Microphone, Battery charging bay
Vehicle & Wall mount: Standard VESA & DC in
12V~36V vehicle adapter, Stylus, 2 bay battery charger |
| Optional |
Docking station: 4x USB, 1x RS-232, 1x VGA, 1x RJ45, 1x DC in, Earphone, Microphone, Battery charging bay
Vehicle & Wall mount: Standard VESA & DC in
12V~36V vehicle adapter, Stylus, 2 bay battery charger |
