DreamBook Rugged X14E

$2,329 RRP (Inc-GST)

Build your own


Product Information

• Support for Win 7,Win 10 system
• Intel® Core™ i5-8250U/i7-8550U, greatly improved performance
• The fuselage is equipped with dual battery design, and the endurance is increased to 6-8 hours
• IP65 high protection level, in accordance with MIL-STD-810G
• Support GPS, Optional Beidou, more accurate positioning
• Support 1920x1200 FHD, optional with Corning gorilla screen and sunshine visual screen
• Support rich expansion slot and fingerprint design, can be applied to various complex industry needs and expand demand


CPU Intel® Core™ i5-8250U/i7-8550U
OS Windows 7/Windows 10
ROM 256GB/512GB
Battery 2000mHA/7.4V +6300mHA/7.4V (pluggable)
LCD 14inch IPS 16:9,1920*1200
Touch Panel Optional 10points Capacitive, G+G, Corning Gorilla Glass
Camera Front 2.0MP

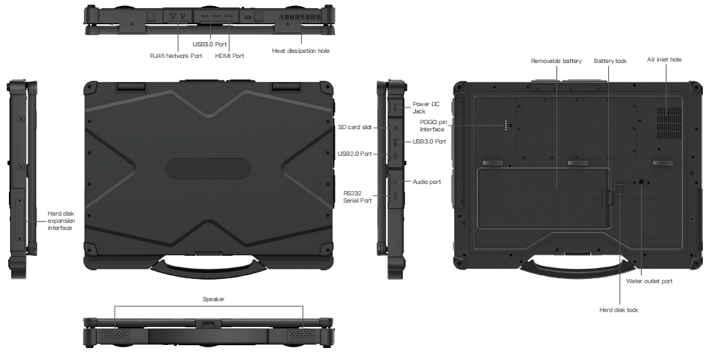

I/O HDMI x 1, POGO 5pin x 1,
USB 2.0 x 1, USB 3.0 x 3,
SIM Card x 1, SD Card x 1,
DB9 RS232 × 1, RJ45 × 2,
Φ3.5mm standard earphone jack x 1,
DC 19V 3.42A x 1
Power AC100V ~ 240V, output DC 19V/3.42A/65W
GPS Support GPS (Optional Beidou)
Network 2.4G+5.8G dual frequency, WIFI 802.11(a/b/g/n/ac)
BT4.2 (BLE) class1 transmission distance:10m
3G/4G (Optional)
LTE FDD: B1/B3/B5/B7/B8/B20/B28A
LTE TDD: B38/B40/B41
WCDMA: B1/B2/B5/B8
GSM: 850/900/1800/1900MHz
Operate Temperature -20 °C ~ 60 °C
Store Temperature -30 °C ~ 70 °C
Humidity 95% Non-Condensing
IP Grade IP65
Device Color black,silvery
Dimension 356 x 269 x 37mm
Weight 2850g
