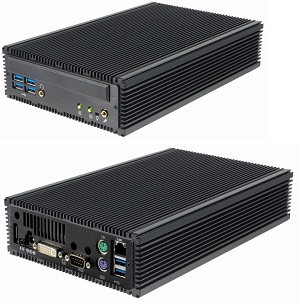

DreamVision Fanless Mini PC S68F
 |
From
$999 RRP (Inc-GST)
|
Product Information
Key applications:
Personal Desktop, Office System.
Digital signage controller.
Thin and Fat Clients.
Video streaming.
Industrial system controller.
POS PC and Kiosk PC.
Gateway, Router, Application Server, File Server, Game Server.
Monitoring, control and data logging.
TV, radio, recording and audiology studios.
Key markets:
Digital signage.
Vehicle computing.
Office.
Semi-industrial.
Security.
POS.
Kiosk.
Studio.
Key benefits:
NO noise.
Complete, full functional computer system.
No proprietary components. Uses standard
processor, RAM and HDDs.
Specifications
| PROCESSOR: |
Intel FCLGA1150 socket Tested 4th generation CPU:
i7-4770TE, i3-4340TE, Pentium G3320TE and Celeron G1820TE |
| MEMORY: |
Support DDR3 1333/1600Mhz non-ECC SODIMM * 2
Total memory size up to 16GB |
| CORE LOGIC: |
Intel Q87(Lynx Point) |
| VIDEO: |
Integrated Intel HD graphics 4600 in processor |
| AUDIO: |
Realtek ALC892 high definition audio CODEC |
| LAN: |
Built-in Intel i217LM high speed Ethernet
100/1000Mbps ethernet PHY Support WOL function |
| USB: |
Integrated XHCI and EHCI controllers
Support six super speed USB 3.0 ports and compatible to USB2.0 |
| SATA: |
Supports SATA 6Gb/s and 3Gb/s specification
Supports 2.5" SATA hard disk drive and solid state drive
Supports SATA Slim DVD-ROM Combo, DVD-RW drive
Supports RAID 0 and RAID 1 function |
| BIOS & HARDWARE MONITOR: |
Insyde UEFI BIOS System, processor temperature, voltage. |
| AC/DC Adapter: |
Input universal AC 100~240V; Output DC 12V/84W |
| SWITCH and JUMPERS: |
Front Panel:
4 x USB 3.0 ports (compatible with USB 2.0/1.1 devices)
1 x Ear Phone jack
1 x MIC-in phone jack
Power-on button
Reset button
Power and HDD LED
Back Panel:
1 x RS232 COM port
1 x RJ45 10/100/1000Mb Fast Ethernet
1 x Line-Out output Jack
2 x USB 3.0 Ports
2 x PS/2 ports for keyboard & mouse
1 x DVI - I port
1 x DP port
1 x 12V DC power jack |
| DIMENSION and WEIGHT: |
Wide 6.3" x Long 9.8" x High 2.3"
(W160mm x L250mm x H58mm) |
| AC ADAPTOR: |
Input 100~240V AC Universal Output 12V
DC power adapter |
| Accessories: |
CPU Heatsink,
Driver CD,
User's guide,
Power cord,
Screw pack |
| Internal: |
An optional mini PCIe daughter board supports
one full size and one half size mini PCIe card
|
|
