DreamVision All-in-One Tough Panel PC K215
 |
From
$1,889 RRP (Inc-GST)
|
Product Information
Fanless and Anti-spray Design
Powered by IntelŽ CeleronŽ J1900 Processor, the DreamVision All-in-One Tough Panel PC K215 have excellent performance in both computing and graphics under fanless architecture. The IP65-rated front design provides protection against water spray and dust infiltration from the front side.
16:9 Widescreen Display
The 21.5″ widescreen with 16:9 aspect ratio is its another important feature, which can provide comfortable viewing experience to operators and allow multi-window display without toggling.
Rugged Enclosure

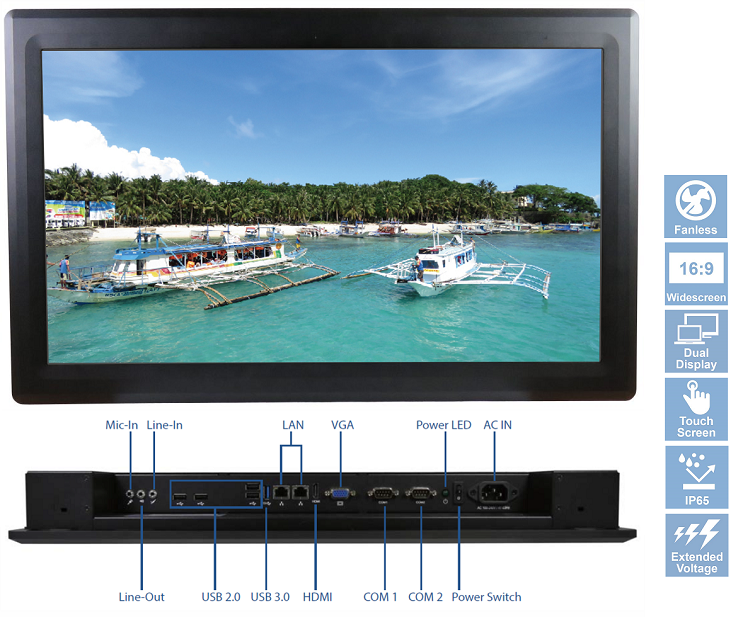

It also reserves space for one SSD mSATA slot for storage expansion. With a variety of I/O ports and expansion slots including 2x GbE LAN, 1x USB 3.0, 4x USB 2.0, 2x COM, 1x HDMI, 1x VGA, and 1x mPCIe, it thus easily meets a broad range of customer requirements. Moreover, DreamVision All-in-One Tough Panel PC K215 features the compact chassis, good resistance to shock, vibration and temperature, it is really an ideal solution to tough industrial environments.
Specifications
| CPU Support |
IntelŽ CeleronŽ J1900
(Quad Core, 2M Cache, up to 2.42 GHz, FCBGA1170 Socket, 10W TDP)
|
| Chipset |
IntelŽ Chipset |
| Memory |
1x DDR3L 1333 SO-DIMM up to 8GB |
| BIOS |
AMI uEFI BIOS w/ 64Mb SPI Flash |
| Graphics |
IntelŽ HD Graphics |
| Display Panel |
Display Size: 1920 x 1080 Full HD
Resolution: 21.5 inch, 16:9
Backlight: LED
Contrast Ratio: 5000:1 (typical)
Brightness: 250cd/m˛ (typical)
Color: 16.7M
Viewing Angle (L/R/H/L): 89°/89°/89°/89°
Touch: 5-wire resistive |
| Touch Sensor |
5-wire resistive touch sensor |
| External Display |
1x HDMI (on rear, 1920 x 1080 @ 60Hz)
1x VGA (on rear, 2560 x 1600 @ 60Hz) |
| LAN |
10/100/1000 LAN
2 (RJ-45 on rear, 1x IntelŽ I210-AT, Realtek RTL8111G) |
| Audio |
Realtek ALC662 HD Codec w/ 2(3W) Speaker-out
1x Line-in (on rear)
1x Line-out (on rear)
1x Mic-in (on rear) |
| Storage |
1x 2.5" SATA HDD / SSD
|
| USB |
1x USB3.0 (Type A on rear)
4x USB2.0 (Type A on rear) |
| COM |
2x RS-232/422/485 (DB9 on rear)
|
| Firmware |
Real Time Clock: SoC integrated RTC |
| Expansion Slot |
1x mSATA (full size)
1x mPCIe (full size)
1x SIM Cage (optional) |
| Hardware Monitor |
Input & Core Voltages, CPU & System Temperatures |
| Watchdog Timer |
Programmable WDT to generate system reset event |
| Power |
Connector: IEC-320-C14 AC Power Connector (on rear)
Input Voltage: AC 100V ~ 240V |
| OS Supported |
Windows 7, Windows 8, Windows 10, Linux |
| Dimensions |
542.6 x 339.2 x 64.5 mm / 21.36" x 13.35" x 2.54" (WxHxD)
|
| Environment |
Operation Temp.: 0°C ~ 50°C / 32°F ~ 122°F
Storage Temp.: -20°C ~ 70°C / -4°F ~ 158°F
Humidity: 10% ~ 80% |
| Certification |
CE, FCC Class A, IP65 (front bezel) |
|
