| Product Collection |

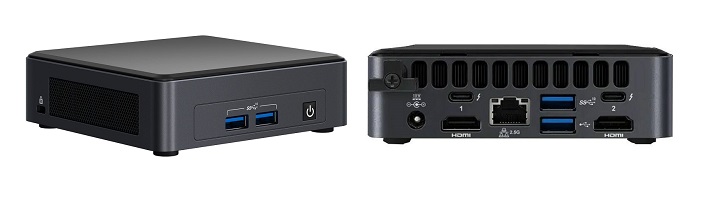

Intel® NUC Kit with 11th Generation Intel® Core™ Processors |
| Code Name |
Products formerly Tiger Canyon |
| Supported Operating Systems |
Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu 20.04 LTS* |
| Internal Drive Form Factor |
2x M.2 and 1x 2.5" Drive |
| TDP |
28 W |
| DC Input Voltage Supported |
12-24 VDC |
| Memory |
Max 64GB DDR4 |
| Graphics |
Integrated |
| Graphics Output |
Dual HDMI 2.0b w/HDMI CEC, Dual DP 1.4a via Type C |
| PCI Express Revision |
Gen 4 (m.2 22x80 slot); Gen 3 (otherwise) |
| PCI Express Configurations |
PCIe x4 Gen 4: M.2 22x80 (key M)
PCIe x1 Gen 3: M.2 22x42 (key B)
PCIe x1: M.2 22x30 (key E) |
| M.2 Card Slot (wireless) |
22x30 (E) |
| M.2 Card Slot (storage) |
22x80 NVMe (M); 22x42 SATA (B) |
| USB |
Front: 2x USB 3.2
Rear: 2x USB 4 (type C), 1x USB 3.2, 1x USB 2.0
Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers) |
| Serial Port via Internal Header |
Yes |
| Integrated LAN |
Intel® Ethernet Controller i225-LM |
| Integrated Wireless |
Intel® Wi-Fi 6 AX201 |
| Integrated Bluetooth |
Yes |
| Additional Headers |
Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby);
Internal 2x2 power connector |
| Thunderbolt™ Ports |
1x Thunderbolt™ 4, 1x Thunderbolt™ 3 |
| Chassis Dimensions |
117 x 112 x 54 [mm] (LxWxH) |
