DreamVision Mini PC Q400
 |
From
$709 RRP (Inc-GST)
|
Product Information
High-performance small media player
DreamVision Mini PC Q400 Series is a Box PC enclosed within a palm-sized aluminum chassis. It can easily fit into any space environment. Powered by 6th / 7th Generation Intel® Skylake / Kaby Lake ULT processors, it delivers excellent processing and graphics performance to applications requiring intense data throughput, especially for video / image data.
Supporting most demanding peripheral applications

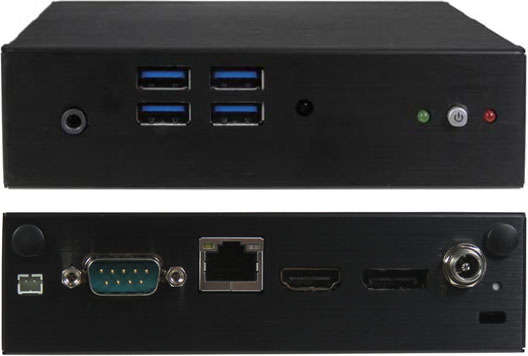

Having one LAN port on rear, one mPCIe socket, one HDMI port, one DP port, four USB3.0 ports and one COM port, DreamVision Mini PC Q400 Series provides flexible network connection and peripheral integration.
Remote control for easy operation
In addition, it has an IR receiver on front panel and allows users to remotely control the box PC itself or the content that is displayed on connected screens.
Features
- Intel® Skylake ULT Microarchitecture
- 2x DDR4 SO-DIMM
- 1x HDMI, 1x DP for video output
- 1x GbE LAN for Ethernet
- 4x USB3.0, 1x RS-232/422/485 for peripheral connection
- 1x 2.5" SATA HDD / SSD for storage
- 1x mPCIe for expansion
- An IR receiver on front for infrared remote control
- 0.6-liter palm-sized compact volume
Specifications
| SYSTEM |
|
| Microarchitecture |
Intel® Skylake ULT |
| Processor |
Intel® Core™ i5-6200U Dual Core Processor (3M Cache, up to 2.80 GHz) |
| Graphics |
Intel® HD Graphics 520 |
| Memory |
2x DDR4 2133 SO-DIMM up to 32GB |
| DISPLAY INTERFACE |
|
| HDMI |
1 (on rear, 4096 x 2304 @ 24Hz) |
| DP |
1 (on rear, 4096 x 2304 @ 60Hz) |
| MULTIPLE DISPLAY |
|
| Multiple Display |
Dual |
| AUDIO |
|
| Audio Codec |
Realtek ALC662 |
| Line-Out/Mic-In |
1 (on front) |
| ETHERNET |
|
| 10/100/1000 LAN |
1 (RJ-45 on rear, Intel® I219) |
| USB |
|
| USB 3.0 |
4 (Type A on front) |
| SERIAL PORT |
|
| RS-232/422/485 |
1 (DB9 on rear) |
| STORAGE & EXPANSION |
|
| SATA2 |
1x 2.5" SATA2.0 HDD / SSD Slot |
| mPCIe |
1 (full size) |
| SIM Card Holder |
1 (optional) |
| POWER |
|
| Connector |
Lockable DC Jack (on rear) |
| Input Voltage |
DC 12V ~ 19V (default)
DC 24V or other options (by request) |
| Power Adapter |
AC to DC, 100V ~ 240V |
| FIRMWARE |
|
| BIOS |
AMI uEFI BIOS w/ 128Mb SPI Flash |
| Watchdog |
Programmable WDT to generate system reset event |
| H/W Monitor |
CPU & System Temperatures, Input & Core Voltages |
| Real Time Clock |
Processor integrated RTC |
| TPM |
Optional (Infineon SLB 9665 TPM2.0) |
| SYSTEM CONTROL & MONITORING |
|
| Button, Switch & Indicator |
1x External Power Button (on rear), 1x IR Receiver (on front), 1x Power Button w/ LED (on front), 1x Reset Button (on rear), 1x Storage LED (on front), 1x Wireless LED (on front) |
| Cooling |
1 CPU Smart Fan |
| SOFTWARE |
|
| O/S Support |
Linux, Windows 10 |
| MECHANICAL CHARACTERISTICS |
|
| Construction |
Aluminum Chassis |
| Dimensions (W x D x H) |
130 x 11
1 x 35 mm / 5.12" x 4.37" x 1.38" |
| Weight |
400 g / 0.97 lb |
| Mounting |
VESA Mount |
| ENVIRONMENTAL CHARACTERISTICS |
|
| Operation Temperature |
0°C ~ 50°C / 32°F ~ 122°F (Standard) |
| Storage Temperature |
-20°C ~ 80°C / -4°F ~ 176°F (Standard) |
| Humidity |
0% ~ 90% |
| CERTIFICATIONS |
EMC & Safety
CE, FCC Class A |
|
