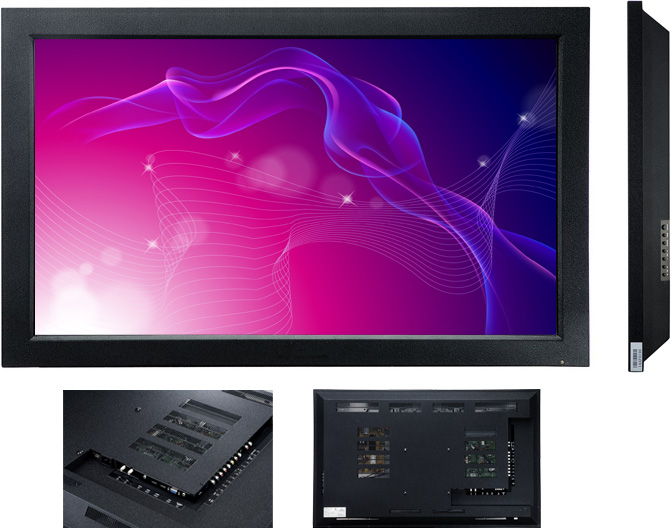

DreamVision 42" LED Touch Screen Display T42
 |
$2,961 RRP (Inc-GST)
|
Product Information
FEATURES
• Supports Single Point Touch/Multi-Point hand suggestion identification/Two Point touch
•
OS Windows 7 Single Point Touch/Multi-Point hand suggestion identification/Two Point touch
• OS Windows XP/2000, Vista Single Point Touch/Multi-Point hand suggestion identification/Two Point touch (Compatible Software support required, for example Gaming functions and Dance Machine functions etc)
•
Glass material and thickness: 3mm (or above) strengh enhanced glass
•
IR 2 point touch diplay (USB 2.0 or RS232 interface)
Specifications
| 1) TOUCH PANEL--------------------------------------- |
|
| Accurarcy of positioning |
< 0.1mm |
| Panel Resolution |
Support up to 4096x 4096 |
| Response Time |
Within 15ms; Minimum 5mm |
| Scanning Response Time |
First touch 17ms; Continuous touches 8ms |
| Arrow Response time |
180 point/Second |
| . |
|
| 2) LCD PANEL-------------------------------------------- |
|
| Panel Size, Type, Refresh speed |
42", LED back light based, 120Hz |
| Resolution (Horizontal/Vertical) |
1920 * 1080 |
| Display area |
930.24(H) x 523.26(V) |
| Contrast |
4000:1 |
| Brightness (cd/m2) |
450 |
| PC Resolution Support |
VGA(640×480@75Hz)
SVGA(800×600@75Hz)
XGA(1024×768@75Hz)
SXGA(1280×1024@75Hz)
WUXGA(1920×1080@60Hz) |
| . |
|
| 3) FUNCTIONS-------------------------------------------- |
|
| Digital PVR (Applicable via model) |
Optional |
| Language |
Traditional Chinese / English |
| Remote reception distance |
Within 10M |
| MTS |
Yes |
| 3:2 Pull Down |
Yes |
| Ratio |
1 |
| PC Compatibility |
Yes |
| 3D deinterlace |
Yes |
| Frequency Scan |
Yes |
| Sleep Timer |
Yes |
| Screen Freeze |
Yes |
| . |
|
| 4) OTHER -------------------------------------------- |
|
| Power input |
110V~220V/50~60Hz |
| Power Consumption (Watt) |
＜150W |
| Stand by Consumption (Watt) |
＜1W |
| Wall Mount screw disctance (VESA compatible) |
200mmX200mm |
| VGA Input |
1 Set |
| PC audio input |
1 Set |
| Component Input YPbPr(480i/480p/576i/ |
1 Set |
| RS232 |
1 Set |
| AV |
1 Set |
| HDMI |
2 Sets |
| USB 2.0 (Supports MPEG2/4/JPEG/MP3/RM/RMVB) |
1 Set (Functions optional by model) |
| S-Video |
1 Set |
| SPDIF |
1 Set |
| Audio In |
RCA In × 2 Sets |
| Audio Out |
RCA out × 1 Set |
| Speaker |
10W * 2 |
| Weight (kg) |
30KG
|
| Size (Stand Excluded) |
118 x 20 x 79 (WxDxH)cm
|
|
