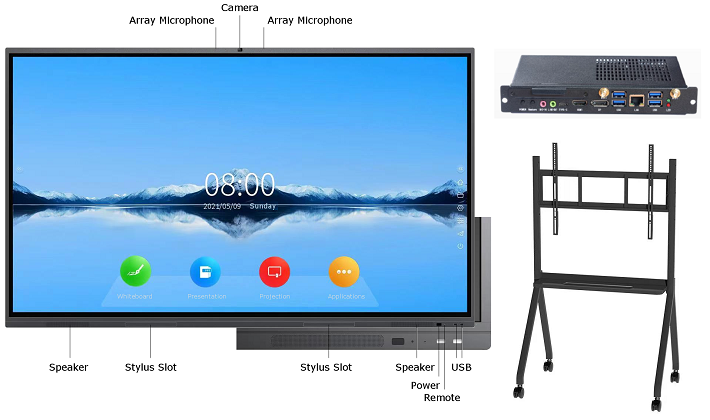

DreamVision Online Meeting Touch Screen 65" 75" 86"
 |
From
$3,900 RRP (Inc-GST)
|
Product Information
Best Screen For Zoom, Team, WebEx On Line Meeting
Specifications
| Panel parameter |
T86 / T75 / T65
Size: 86 / 75 / 65inch
Screen Types: ADS
Respond time: 8ms
Aspect ratio: 16:9
Maximum display size: 1895.04（H）× 1065.96（V）mm / 1649.664（H）× 927.936（V）mm / 1428.48（H）× 803.52（V）mm
Resolution: 3840（H）× 2160（V）
Pixel pitch: 0. 4935×0. 4935 mm / 0.4296×0.4296 mm / 0.372×0.372mm
Frequency: 60Hz
Chromaticity: 1.07B (10bit)
Color gamut NTSC (Typ): 72%
Contrast ratio (Typ): 1200:1
Viewing angle: 178°(H/V)
Backlight type: DLED
Brightness (Typ): 350cd/m2
Service hours: ≥30000 |
| Audio and video |
Speaker: 2.1 Sound channel, 2 x 10W + 15W
Camera: 1 x Top border 800W pixel
Microphone: 6 x Pick up 0-8m |
| Touch Configuration |
Touch type: IR touch
System supported: Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome
Touch point: 20 points touch
Minimum touch object: 2mm
Touch mode: Finger、Passive infrared pen
Respond time: ≤10ms
Touch precision: ±1mm
Touch height: ≤3mm
Writing mode: Single pen with two color
Coordinate of touch output: 32767 (W) ×32767(D) |
| System and CPU |
Android version: Android 8.0
CPU: Dual core A73+Dual core A53
GPU: Four core Mali-G51
RAM: 4GB
ROM: 32GB |
| WiFi |
Bluetooth: BT4/2.4GHz, 0-10m working distance
Wi-Fi: 802.11 a/b/g/n/ac, 2.4GHz/5GHz, 0-12m working distance
Note: Functions realized by wireless module SI02 |
| IO |
3 x HDMI in, 1 x HDMI out, 3 x USB 2.0, 3 x USB 3.0, 2 x Touch, 1 x VGA in, 1 x Audio in, 1 x Audio out, 1 x SPDIF, 1 x RS232, 1 x RJ45 in |
| Power |
100-240V～ 50/60Hz 4.5A and 4A
450W Max , 400W and 300W / ≤0.5W Standby |
| Dimensions & Weight |
Bare Dimension（L×W×D）: 1957×1175×90 mm / 1710×1035×90 mm / 1489×912×90 mm
Packing Dimension（L×W×H）: 2134×210×1334 mm / 1886×210×1196mm / 1650×203×1050mm
Thickness(including bracket): 120mm (WIB9060G)
VESA Hole Specifications（LxW）: 800×600mm / 800×600mm / 600×400mm
Specification of wall screw: M8×25mm
Net Weight: 68.78kgs / 54.55kgs / 40.05kgs
Gross Weight: 89.28kgs / 70.65kgs / 50.20kgs |
| Environmental |
Working Temperature: 0℃~40℃
Working Humidity: 10%~90%RH
Storage Temperature: -20℃~60℃
Storage Humidity: 10%~90%RH
Work at an altitude of 5000 meters below |
| Optional |
OPS i5/i7 Windows 10 PC |
|
